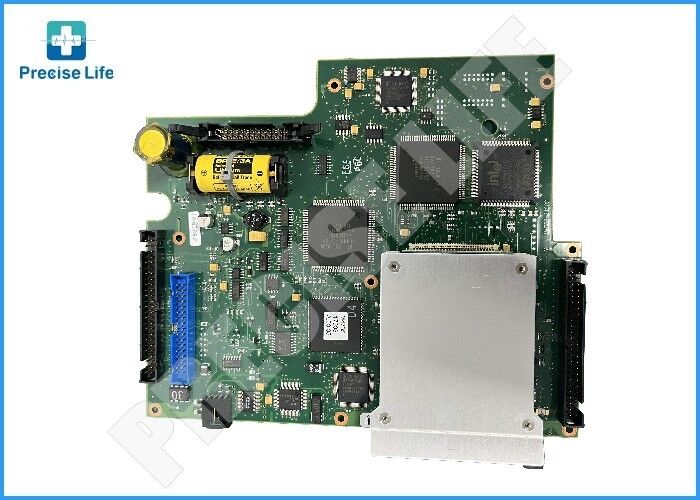

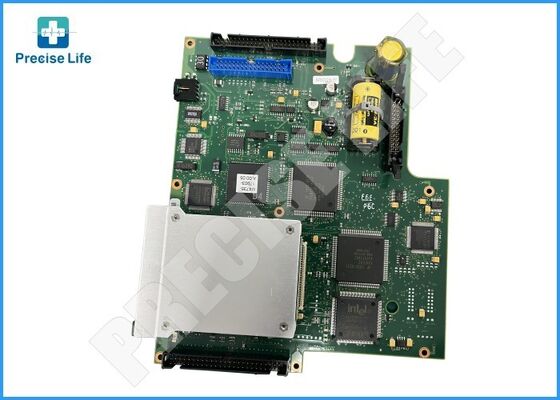

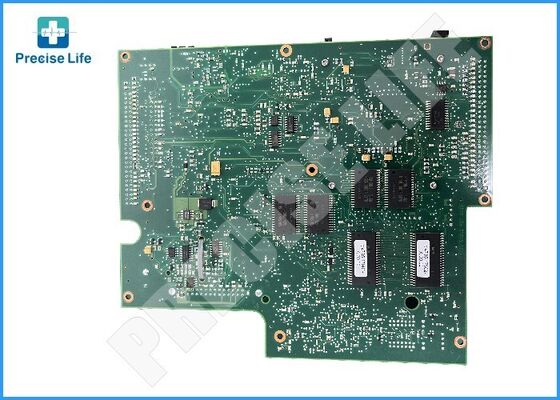

PH M4735-80202 mainbaord Heartstart XL M4735-80202 mainboard
The Ph M4735-80202 Mainboard is the central processing unit and control core of the Ph Heartstart XL M4735A defibrillator/monitor system. This sophisticated printed circuit board assembly integrates high-performance microprocessors, precision analog circuitry, and advanced digital signal processing components essential for life-saving cardiac resuscitation therapy. As the primary electronic control module, this mainboard orchestrates all critical defibrillator functions including SMART Biphasic waveform generation, ECG signal acquisition and analysis, energy charging and delivery systems, and user interface management. Manufactured to stringent medical device quality standards, the board features robust industrial-grade components designed to withstand the demanding environment of emergency cardiac care. Each unit undergoes comprehensive functional testing to ensure reliable operation during critical life-support situations, maintaining the high reliability standards expected of Ph emergency medical equipment.
.
Product Specifications
This critical electronic control assembly serves as the operational brain of the Heartstart XL defibrillator, extensively deployed in emergency departments, cardiac catheterization labs, ambulance services, intensive care units, and operating rooms where rapid cardiac resuscitation capabilities are essential. The mainboard enables both manual defibrillation for ACLS-trained clinicians and automated external defibrillation (AED) mode for emergency responders, supporting synchronized cardioversion for unstable tachycardias and non-invasive pacing for bradycardic patients. Biomedical engineering technicians rely on this component during equipment refurbishment, motherboard replacement procedures, and system upgrades to maintain defibrillator readiness. The board's integrated data management capabilities support comprehensive event documentation for quality assurance and medical-legal requirements, storing detailed treatment records including ECG waveforms, delivered energy levels, and time-stamped intervention markers.
Compatible Systems
PH Heartstart XL
Key Features & Benefits
Integrated Life-Support Architecture: The mainboard consolidates multiple critical functions—ECG acquisition, arrhythmia detection, energy management, and user interface control—onto a single reliable platform, eliminating complex inter-board connections that could compromise emergency response reliability.
SMART Biphasic Waveform Technology: The integrated waveform generation circuitry delivers impedance-compensated biphasic shocks that optimize energy delivery based on patient impedance, improving defibrillation efficacy while minimizing myocardial damage compared to monophasic alternatives.
Comprehensive Event Documentation: Embedded storage capabilities retain up to 300 treatment events and 50 continuous ECG recordings, supporting retrospective case review, quality improvement initiatives, and regulatory compliance documentation without requiring external data management systems.
Dual-Mode Operational Flexibility: The sophisticated processing architecture supports seamless transition between fully automated AED operation with voice prompts for BLS responders and comprehensive manual control for ACLS providers managing complex cardiac emergencies.
Note: All brand names above are for reference only!
